Research on MMB is funded by the NASAExobiology program.

Understanding the origins of multicellularity and the organization of complex life is a critical endeavor in biology. Past studies on the transition from single cells to multicellular entities mostly focused on volvocine green algae and early radiating animal taxa as experimental systems. While multicellular bacteria exist, their organization appears comparatively simple, and multicellularity seems to occur only as an adaptation to changing environmental conditions or as a single step in a complex life cycle.

A group of delta-Proteobacteria termed multicellular magnetotactic bacteria (MMB) constitutes the only known exception to this view. MMB are mono-species consortia typically 3-15 μm in size. They are comprised of 10-60 cells arranged in symmetry around a central acellular compartment. Each cell is multiply flagellated and contains magnetic crystals, called magnetosomes, which are used to guide the consortia along the geomagnetic field lines. The life cycle of MMB has no known unicellular stage. Division occurs by separation of a MMB into two apparently identical daughter consortia, while disaggregated cells rapidly lose viability. These characteristics render MMB the only identified bacteria with an obligate multicellular lifestyle and make them a prime subject for the study of the early evolution of advanced life, the cellular and molecular organization of multicellular entities, and the extent of division of metabolic labor and cellular differentiation in bacteria.

New approaches to probe in situ activity and ecophysiology of uncultured microbes

Research on microbes in coastal sediments is supported by the Marine Microbiology Initiative of the Gordon and Betty Moore Foundation. Our work on Guaymas basin sediment microbiology is supported by the NSF Systems and Synthetic Biology program.

Microbial drivers of organic carbon degradation in deep-sea and coastal sediments

If the physiology of uncultured cells is to be determined, approaches that target the single cell level are essential in order to link the identity of a cell to its specific function. During his postdoc, Roland has developed a new approach to studying metabolically active, but uncultured cells. This technique, termed bioorthogonal non-canonical amino acid tagging (BONCAT), is based on the in vivo incorporation of synthetic amino acids that exploit the substrate promiscuity of the translational machinery. After incorporation into new proteins, these artificial amino acids can be fluorescently detected via azide-alkyne click chemistry, a highly selective and biocompatible labeling reaction. When used in conjunction with rRNA-targeted fluorescence in situ hybridization (FISH), BONCAT allows the identity of a cell and its in situ translational activity to be linked. BONCAT is intrinsically high throughput and, when combined with cell-sorting devices, enables individual cells to be separated from complex samples based on their anabolic activity. In contrast to isotope labeling approaches, which require specialized instrumentation, BONCAT-FISH and BONCAT-FACS use standard microscopes and flow-cytometers that are more readily available to molecular biological labs. We are currently expanding our work from the realm of proteins to other classes of biomolecules and are developing novel approaches to target cellular in situ activity on bulk and single cell level.

We study the ecological niches, biogeochemical roles, in situ activities, and biotechnological potential of lineages of (hyper)thermophilic uncultured archaea in geothermal features of Yellowstone National park. We currently focus our efforts on the lineages Aig-, Bathy-, Geo-, Kor-, Verstraete-, and Thaumarchaeota and are interested in expanding our view towards novel groups. For this, we are performing a wide-range microbiological and geochemical survey of ~100 features in five regions of Yellowstone National Park. A map of the park is at the bottom of this page.

We achieve our goal of linking new archaeal taxonomies with in situ function by a combination of metagenome sequencing of environmental DNA and testing genome-derived hypotheses by single cell targeted physiology approaches, including stable isotope probing and bioorthogonal labeling. The latter two approaches distinguish our lab from most other labs, who often do not put their hypotheses to an experimental test.

Watch live-stream from Yellowstone.

Investigated by: Anthony Kohtz, Zack Jay, Viola Krukenberg, Mackenzie Lynes, and Nick Reichart

Video: MMB reacting to a magnetic field.

In collaboration with the labs of Andreas Teske (Univ. of North Carolina, Chapel Hill) and Brett Baker (Univ. of Texas at Austin), we study the genomics and ecophysiology of uncultured bacteria and archaea in Guaymas basin sediments. Specifically, we seek to determine​ the identities, in situ activities, and niche-determining factors of cells involved in the degradation of high molecular weight carbon (HMW) compounds of photosynthetic origin, detrital protein and lipids, and HMW hydrocarbons.

Investigated by: Viola Krukenberg

In collaboration with the labs of Peter Girguis (Harvard) and Mark Ellisman (UCSD), we study the three-dimensional organization of microbial activity in salt marsh and deep-sea sediments. To achieve this goal, we employ a unique combination of core sleeve in situ incubation technology, BONCAT, cell sorting, cutting-edge electron microscopy techniques, and 3D-computational reconstruction.

Investigated by: Rachel Spietz

Multicellular magnetotactic bacteria: a window into the early evolution of advanced life

Video: Taking sediment cores during Alvin dive 4999 in Guaymas basin. Credit: Roland Hatzenpichler & Woods Hole Oceanographic Institution.

In addition to bioorthogonal labeling, we use stable isotope probing in combination with single cell visualization instruments to study substrate uptake and in situ activity. Specifically, we are starting to use a Confocal Raman microscope with cell sorting capability that was recently installed at MSU. We will use this instrument to study the biochemistry and in situ biogeochemical function of uncultured cells, separate them from samples, and use function-targeted genomics to further characterize them. In addition, we collaborate with the Environmental Molecular Sciences Laboratory to use their nano-scale secondary ion mass spectrometry (nanoSIMS) instrument.

Video: Five Sisters hot springs group.

Our hot spring research is supported by a FICUS project with the JGI and EMSL, an NSF EPSCoR project, the NASA Exobiology program, and a NASA Early Career Fellowship to Roland. Research is performed in collaboration with Emiley Eloe-Fadrosh and Tanja Woyke (JGI), Luke McKay, Tim McDermott, Bill Inskeep, Robin Gerlach, and others at MSU's Thermal Biology Institute.

Some of the currently most pressing questions are: do individual cells within MMB consortia exhibit cell differentiation and division of labor? Are the consortia clonal and, if not, what are the evolutionary consequences? Which genetic factors do MMB share with other multicellular microbes and which ones set them apart from their unicellular relatives? What is the diversity and ecophysiology of MMB? What are the factors controlling their ecology and the fine interplay of aero-, chemo-, magneto-, and phototaxis?

Investigated by: George Schaible​​

Biogeochemical function and situ activity of archaeal dark matter in geothermal springs

Sampling sites as of August 2019.

Development of new bioorthogonal labeling approaches for singe cell resolved activity tracing is performed in collaboration with JGI and EMSL via a FICUS project. Our work on developing new approaches for visualizing activity of marine microbes at nm to cm scale is funded by the Marine Microbiology Initiative of the Gordon and Betty Moore Foundation and is performed in collaboration with Peter Girguis (Harvard), Mark Ellisman (UCSD), Valerie Copie and Brian Bothner (MSU). The acquisition of a Raman microscope was spearheaded by Roland and has been funded by the NSF MRI program and the M.J. Murdock Charitable Trust.

Our research activities focus on microbial ecophysiology: the study of the physiology of microorganisms with respect to their habitat. We are interested in how the activity of the “uncultured majority” – the large number of microbes that evades cultivation under laboratory conditions – impacts humans and the environment on a micron to global scale. We are convinced that only by gaining an understanding of microbes directly in their habitats researchers will be able to elucidate the mechanisms of microbial interactions with the biotic and abiotic world. To accomplish these goals, we apply an integrative approach that bridges the two extremes of the microbial scale bar: the individual cell and the whole community.

Very broadly, the research questions our lab addresses are:

   (1) who is doing what (linking phylogenetic identity and physiological function),
   (2) what are the abiotic and biotic factors controlling microbial in situ activity,
   (3) how does this activity affect the environment and ultimately humans,
   (4) what are the limits to metabolism in terms of energy, space, and time, and
   (5) how can we discover novel structures and functions within uncultured microbial lineages?

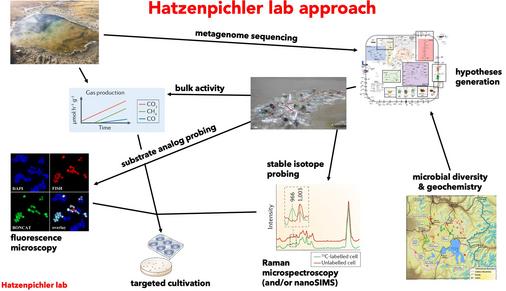

Our approach to these problems is inherently multi-disciplinary and multi-scaled. In order to address previously unrecognized physiologies and cellular interactions of uncultured microbes, we employ a unique combination of metagenomics (as hypotheses generator), high-through-put metabolic screening via bioorthogonal labeling (to identify geochemical and biotic parameters driving ecology), and single cell resolved stable isotope probing via Raman and nanoSIMS (to identify specific growth-sustaining substrates). Because these approaches target the whole microbiome as well as the individual cell we do not depend on samples enriched in a target population, as is often necessitated in ecological studies. Our main study sites are sediments from a variety of geothermal, deep-sea, and coastal habitats.

Visualizing the activity of sediment microbes. DAPI, blue. FISH, green. BONCAT, magenta. Bar, 10 micron.

AHA and HPG are synthetic amino acids that compete with Met for incorporation into new proteins. Azide-alkyne click chemistry allows for fluorescent labeling of these proteins (A), and rRNA-FISH enables these cells to be taxonomically identified (B). Using fluorescence-activated cell-sorting (FACS) and whole genome amplification active cells can be separated from inactive ones and their DNA be sequenced (C). For a protocol on how to perform BONCAT-experiments see our recent book chapter. Also, feel free to download slides for talks and classes.
